Thetford T2090 12v Compressor fridge – the long-awaited update to the T1090

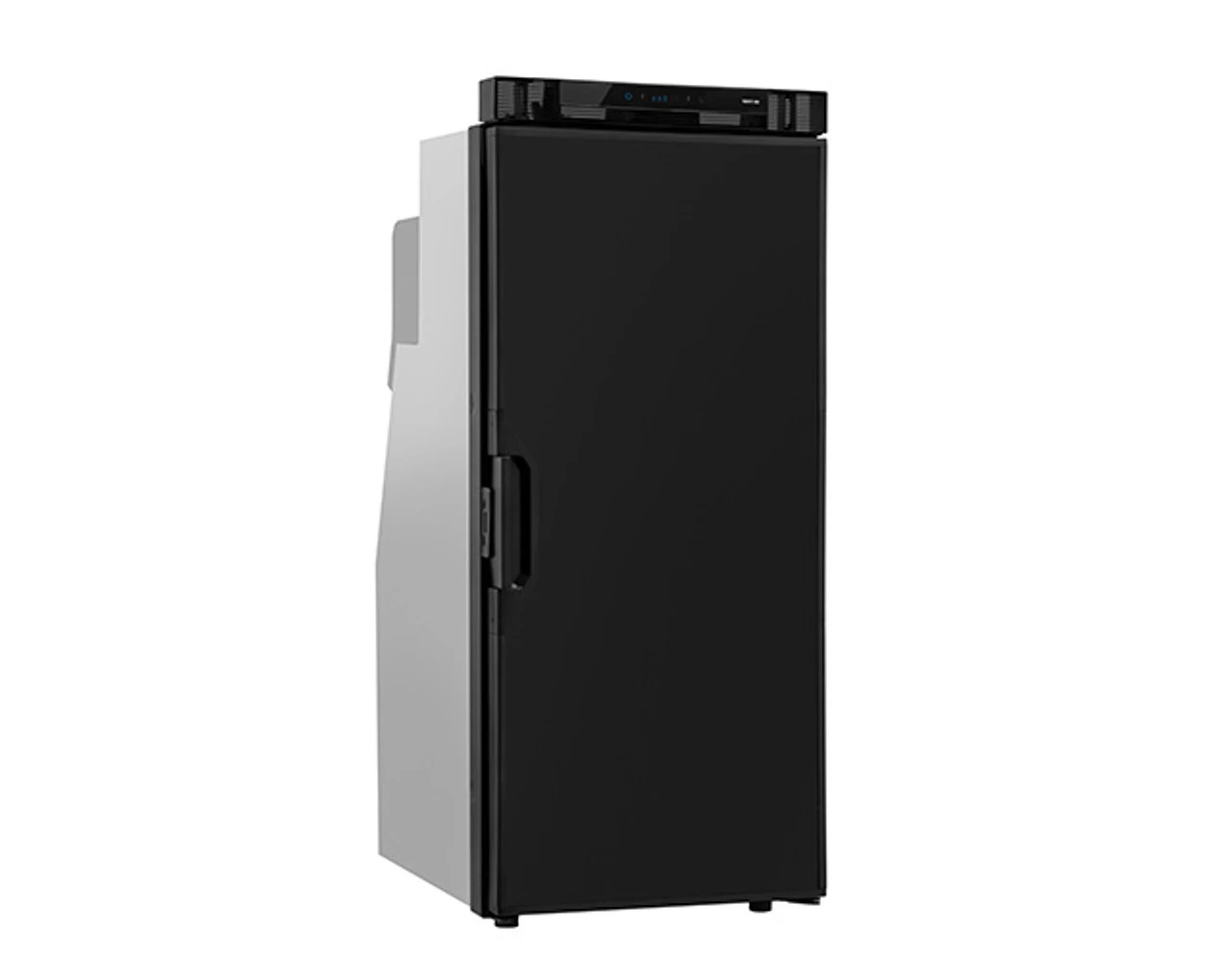

Curved back for a snug fit

This compressor fridge is specifically designed for use in panel van conversions, allowing for the curvature of the wall. The compact measurements of this 12v fridge give you more freedom with your campervan, caravan or motorhome’s internal layout, allowing for the curvature of your vehicle’s walls.

High-tech compressor performance

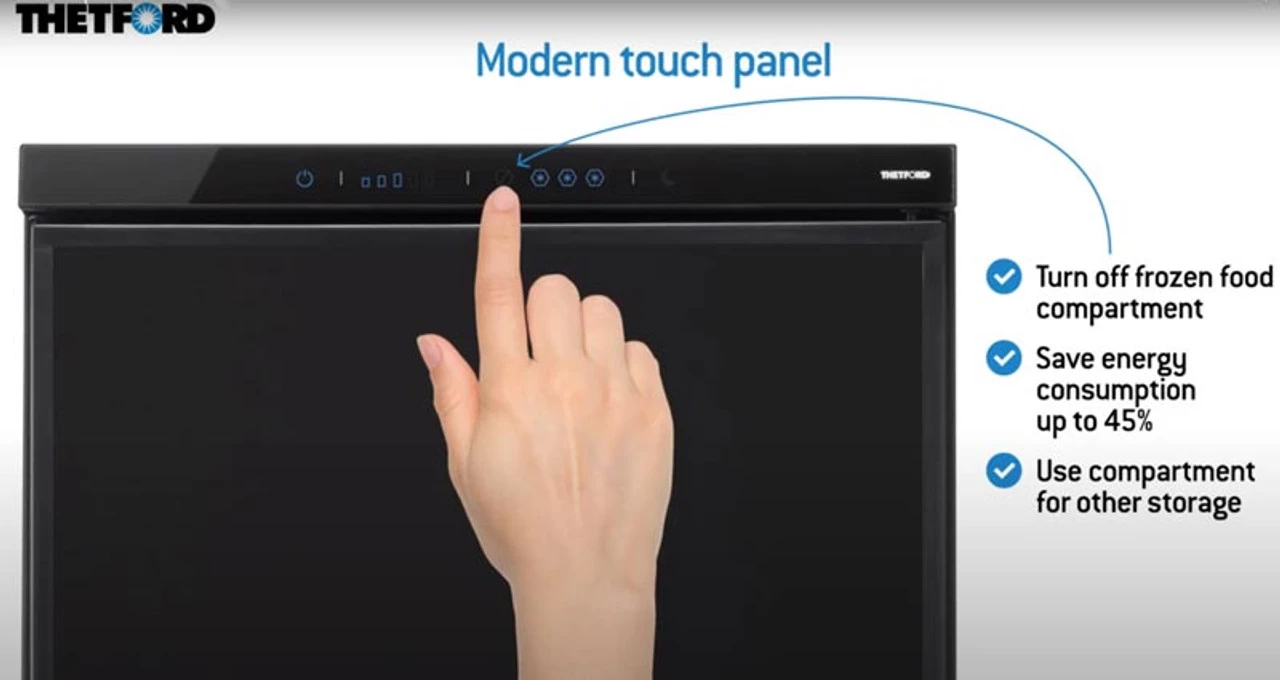

Thetford have expanded on the already-popular performance of the T1090, finding big efficiency gains with the T2090. The fridge’s battery efficiency gives you an incredible 8 days (on 2 x 95 Ah batteries), making it perfect for extended off-grid trips. The display has been upgraded to a modern capacative touch screen, allowing you to easily switch between operating modes. The Thetford T2090, for example, includes a Night Mode function, which reduces the noise of the fridge to a whisper, letting you get a good night’s sleep. These features can also be controlled via the latest campervan, motorhome and caravan control panels, thanks to the inclusion of CI-BUS compatibility.

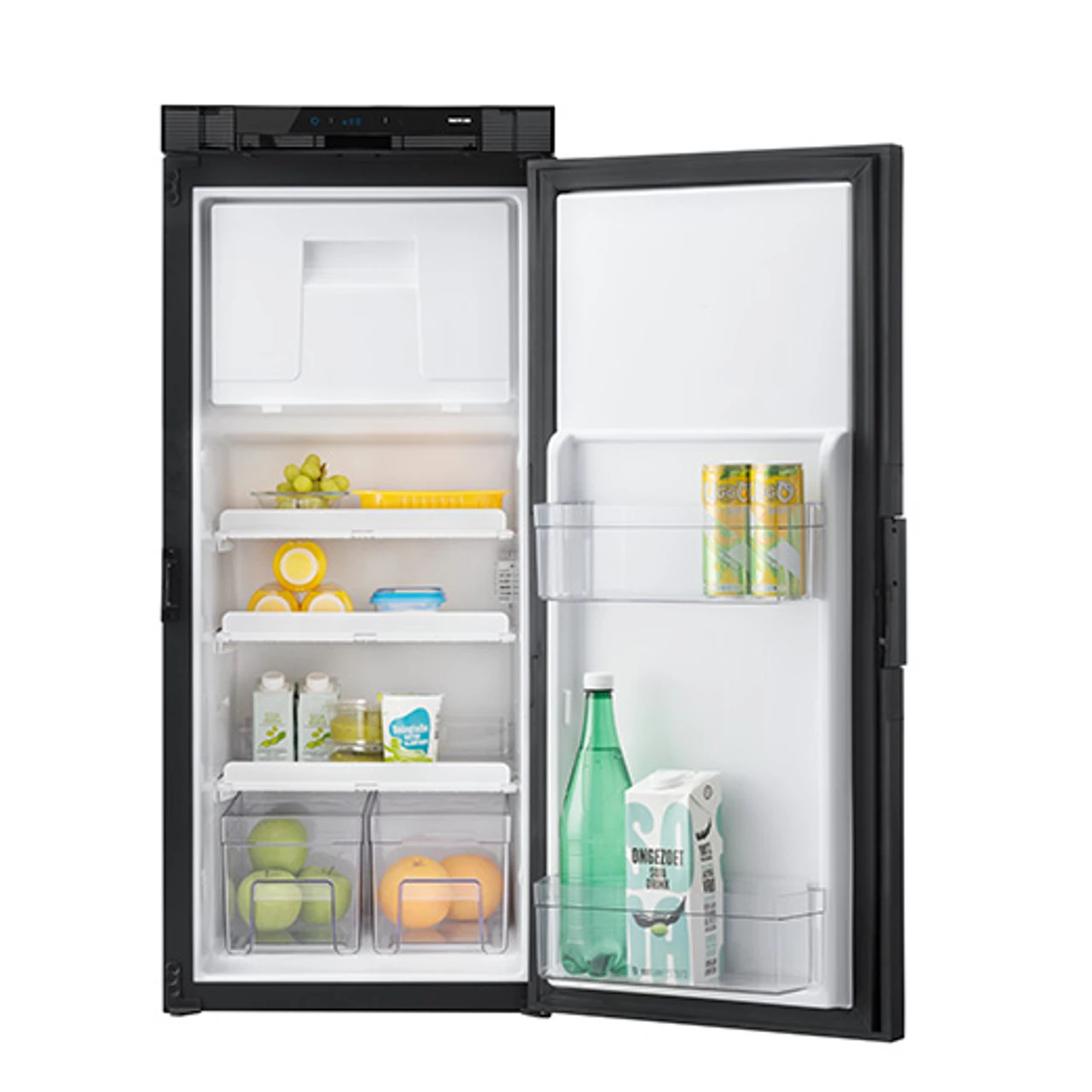

Versatile cooling

The Thetford T2090 compressor fridge includes an integrated 6 litre freezer compartment, ensuring you aren’t limited in the food you bring on your journey. This freezer space, combined with an additional 78 litres of fridge space, ensures you won’t feel compromised on the road. You can even use the touch panel to disable the fridge freezer if you wish, allowing you to save power.

Key Features:

• No external vent required
• Unique shape allows for the curve on the wall of your van
• Ultra efficient power use
• Day & night mode makes it super efficient
• 90 litre capacity with compact dimensions
• Low noise operation
• Freezer to minus 9 degrees

Technical Specifications

Main Dimensions:	975 x 418 x 486mm
Recommended Built-In Depth	506mm
Total Volume	84 litres
Freezer Volume	6.1 Litre
Usable Power Source	12v DC
Energy Consumption	0.28 kWh/24h
Amount Of Days On 2 x 95AH Battery	8 days
Climate Class Day Mode	ST (16-38°C)
Climate Class Night Mode	N (16-32°C)

User Manual:

Installation Manual:

Technical Specifications:

Height (mm):

975

Width (mm):

418

Depth (mm):

486

Operation:

Compressor

Total Volume:

90 Litres

Freezer Volume:

6.1 Litres

Wheel Arch Model:

No

Door Version:

Interchangeable Left or Right hinge

Energy Selection:

Automatic

Display:

LED

Energy Consumption:

0.28 kWh/24h

Net Weight:

21 Kg
